FC400137

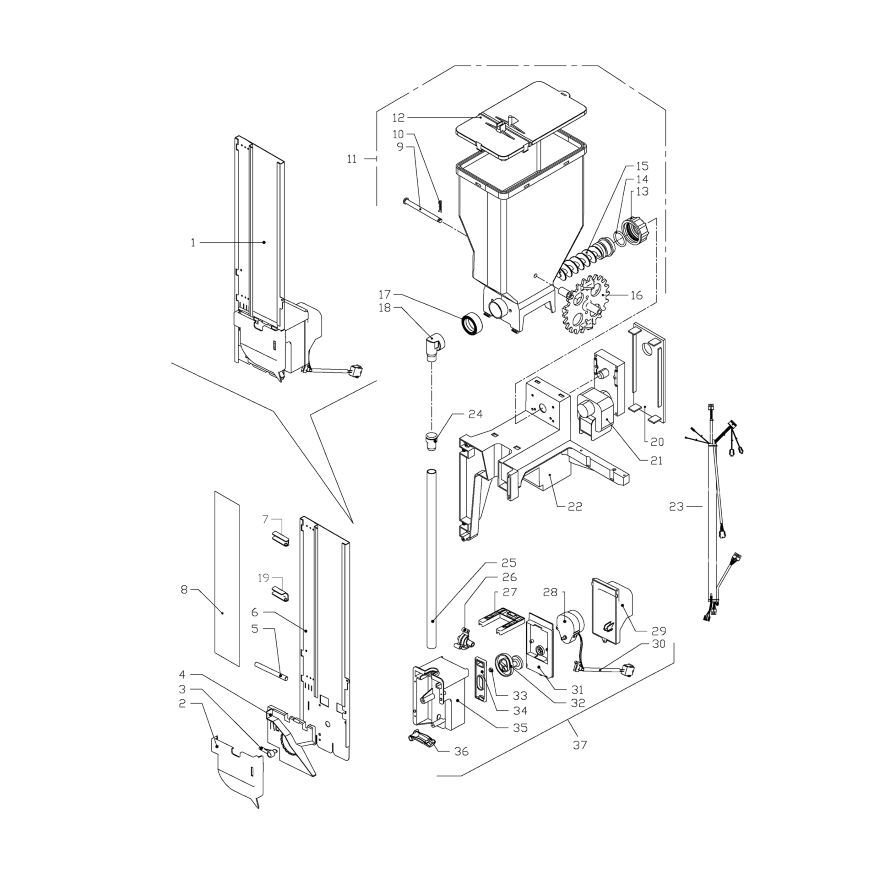

DISTRIBUIDOR AÇÚCAR E PALETINAS
(clique na imagem para aumentar)
Legenda:
- 01 FC850202-SUGAR/STIRRER DISPENSER ASSEMBLY*
- 02 FC400130-STIRRER CHUTE*
- 03 FC400138-STIRRER DISPENSER ECCENTRIC*
- 04 FC400131-STIRRER REGULATOR*
- 05 F15200035A-STIRRER PRESSING WEIGHT 90mm*
- 05 F15220001A-STIRRER PRESSING WEIGHT 105mm*
- 06 FC400311-STIRRER DISPENSER TT*
- 07 F621925-STIRRER DISPENSER HINGE FAS300T*
- 08 FC855033-STIRRER UNIT ADHESIVE WITH INSTRUCTIONS*
- 09 FC700068-CANISTER PIN NSF*
- 10 F211211-INOX SPLIT-PIN 20x5.5 PIN 3.5*
- 11 FC850204-CONTENIDOR DE AZUCAR PERLA*
- 12 FC400300-TT SUGAR CANISTER CUP*
- 13 FC400209-LOCKING CANISTER SCREW RING NUT*
- 14 F221058-O-RING 3075*
- 15 FC400302-SUGAR CANISTER COCHLEA*
- 16 FC400201-SPECIAL CANISTER NSF WHEEL*
- 17 FC400139-SUGAR PIPE REDUCTION*
- 18 FC400141-SUGAR DISPENSER PIPE*
- 19 F622008-CUPS DISPENSER HOLDER HINGE FAS300T*
- 20 FC400310-TT SUGAR/STIRRER HOLDER MOTOR CUP*
- 21 FC302020-MOTORGEAR MOD. K9115867*
- 22 FC400309-SUGAR/STIRRER DISPENSER TT SUPPORT*
- 23 FC300239-CUPS D./SUGAR/STIR./NOZ. WIRING FAS300T*
- 24 FC400142-SUGAR HOSE REDUCTION*
- 25 F108059-SPECIAL SUGAR PIPE SHA50 18X15X260*
- 26 FC400467-DPZ HINGE;
- 27 FC400132-STIRRER EXPELLER*
- 28 FC845016-MOTOR DO BRAÇO DA PERLA 6 SEGUNDOS;
- 29 FC400140-SUGAR DISPENSER COVER*
- 30 FC300121-SUGAR/STIRRER WIRING*
- 31 FC400133-STIRRER MOVEMENT REAR BODY*
- 32 FC400137-CAME ZP DPZ;
- 33 F15200050A-DISPENSR CAM BUSHING*
- 34 FC400392-SLIDING BAR*
- 35 FC400129-STIRRER MOVEMENT FRONT BODY*
- 36 FC750098-CALHA DE SUPORTE DO TUBO DE AÇUCAR;
- 37 FC850345-SUGAR/STIRRER DELIVERY UNIT*
* artigo não disponível.Contacte-nos para mais informações
